MikroTik Chateau 5G R16 (D53G-5HacD2HnD-TC&RG520F-

Produktinformationen "MikroTik Chateau 5G R16 (D53G-5HacD2HnD-TC&RG520F-"

MikroTik Chateau 5G R16 (D53G-5HacD2HnD-TC&RG520F-

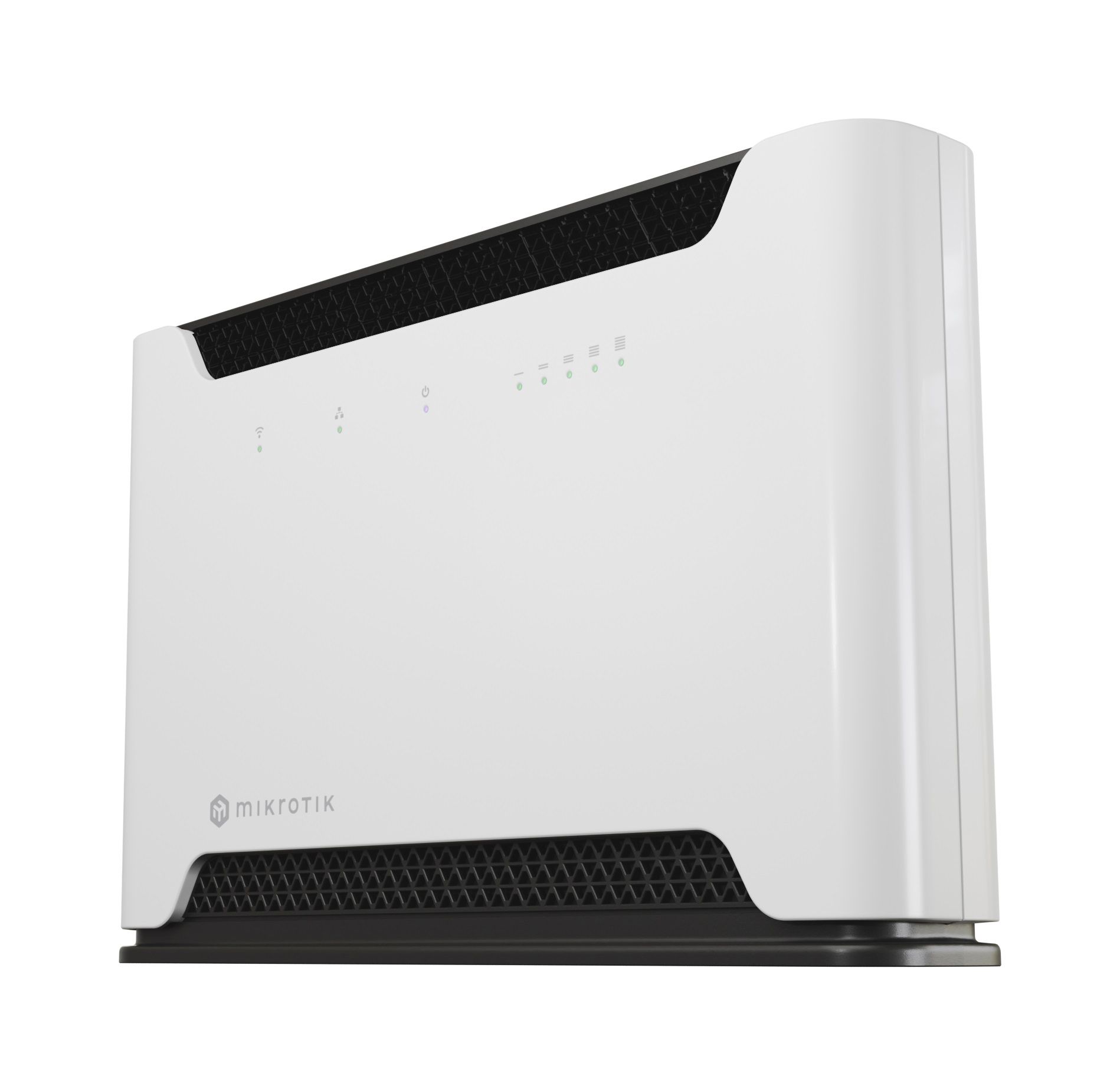

MikroTik Chateau 5G R16 (D53G-5HacD2HnD-TC&RG520F-EU)


  • Dualband Indoor WLAN router with LTE/5G support
  • Upgrade of Chateau 5G
  • LTE/5G
  • Dualband WLAN 2.4 GHz (802.11b/g/n dual-chain) and 5 GHz (802.11a/n/ac dual-chain)
  • 5 Gigabit Ethernet Ports
  • Quad-Core CPU IPQ-4019, 448-896MHz (auto)
  • 16MB Flash
  • 256MB RAM
  • 5 x 10/100/1000 Ethernet Ports
  • 1 x USB 2.0 port type A
  • 1 x M.2 Slot
  • 1 x Micro SIM
  • Dual-Chain 2.4GHz 802.11b/g/n
  • Dual-Chain 5GHz 802.11a/n/ac
  • Antenna gain: 3dBi (2.4 GHz) 5.5dBi (5GHz)
  • 5G:NSA Sub-6 (4.0 Gbps Downlink, 550 Mbps Uplink) SA Sub-6 (4.0 Gbps Downlink, 900 Mbps Uplink)
  • Bands NSA FDD: 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz) TDD:38 (2600 MHz) / 40 (2300 MHz) / 41 (2500 MHz) / 75 (1500 MHz) / 76 (1500 MHz) / 77 (3700 MHz) / 78 (3500 MHz)
  • Bands SA FDD: 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz) FTDD:38 (2600 MHz) / 40 (2300 MHz) / 41 (2500 MHz) / 75 (1500 MHz) /  76 (1500 MHz) / 77 (3700 MHz) / 78 (3500 MHz)
  • LTE-Modem: R11mL-RG520F
  • LTE Kategorie: 20 (2.0 Gbps Downlink, 200 Mbps Uplink)
  • LTE (FDD) Bands: 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz) / 32 (1500 MHz)
  • LTE (TDD) Bands: 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz) / 42 (3500MHz) / 43 (3700MHz)
  • UMTS Bands:1 (2100MHz) / 5 (850MHz) / 8 (900MHz)
  • 4 x 4 MIMO
  • Supported Input voltage: 12 - 28V
  • Operating temperature: -40°C bis +70°C
  • Dimensions: 240 x 156 x 44mm
  • Including 1 x 24V / 1.5A power supply, UTP flat cable (1.5m)
